Footprint SRO: Trijicon RMR / SRO, Holosun HE407C / HE507C / HS407C / HS507C, Swampfox Kingslayer / Liberty / Justice

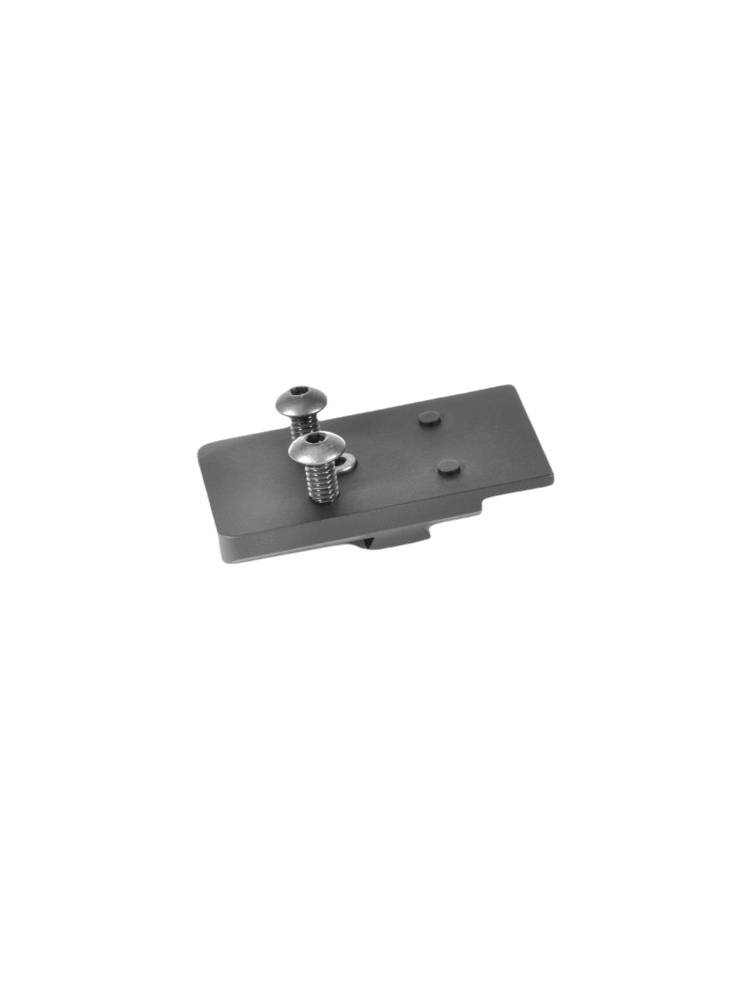

Footprint RTS: C-More RTS3 / RTS2 / STS, Vortex Razer
Passer normalt sikter som baserer seg på samme footprint.
Kan noen ganger kreve små tilpassninger.

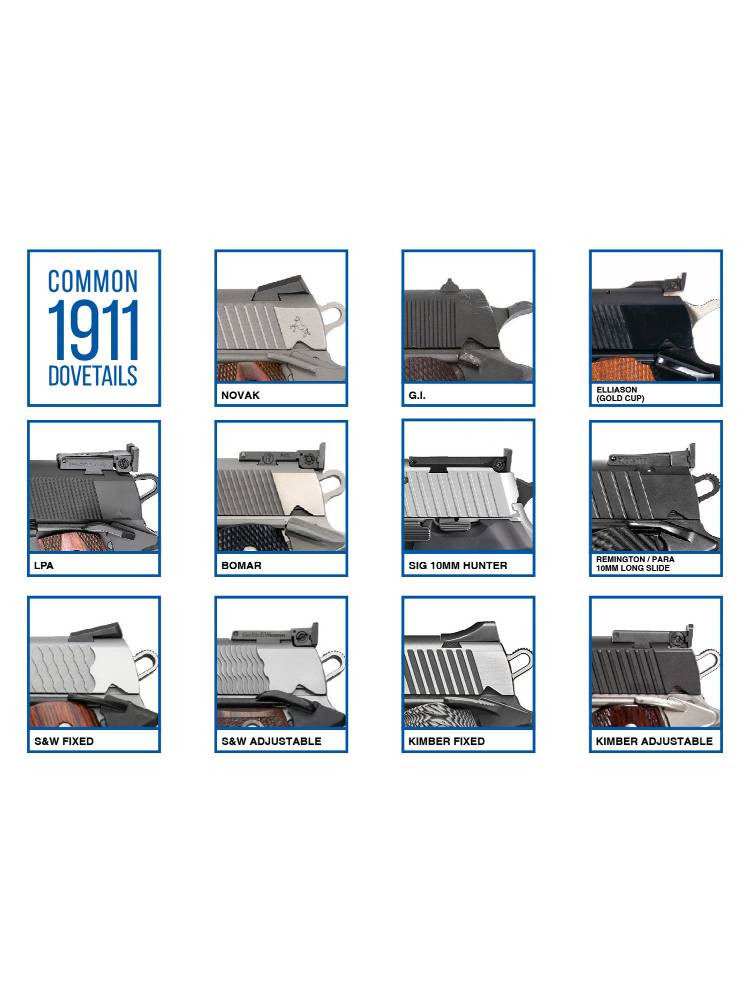

This mount fits (including but not limited to):

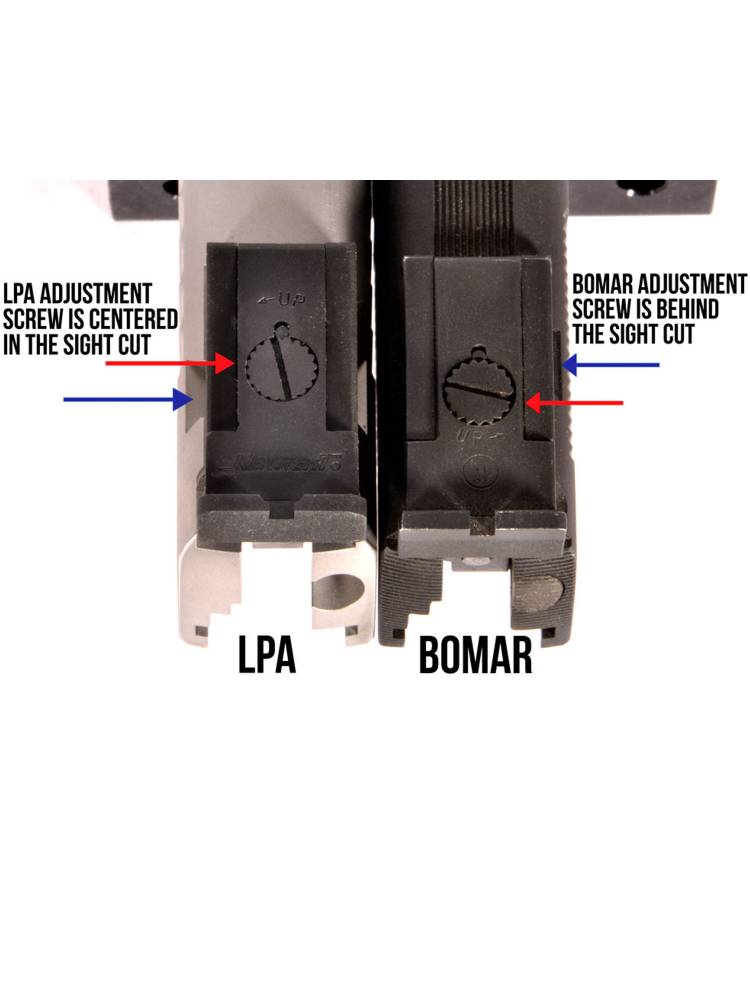

- STI Edge (either this sight or LPA)
- SVI (Sjekk om det er Bomar eller SVI sitt eget Low Cut feste. Low Cut krever tilpassing)
- Les Baer 1911 (adjustable rear sights)
- Colt Gold Cup Trophy with Bomar Rear Sight Cut
- Colt Gold Cup National Match .45acp
- Colt Gold Cup National Match 9mm
- Springfield TRP Operator
- Dan Wesson Bruin (may require fitting due to the Clark cut on the top of the slide)
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780″
Overall Width: 1.1″

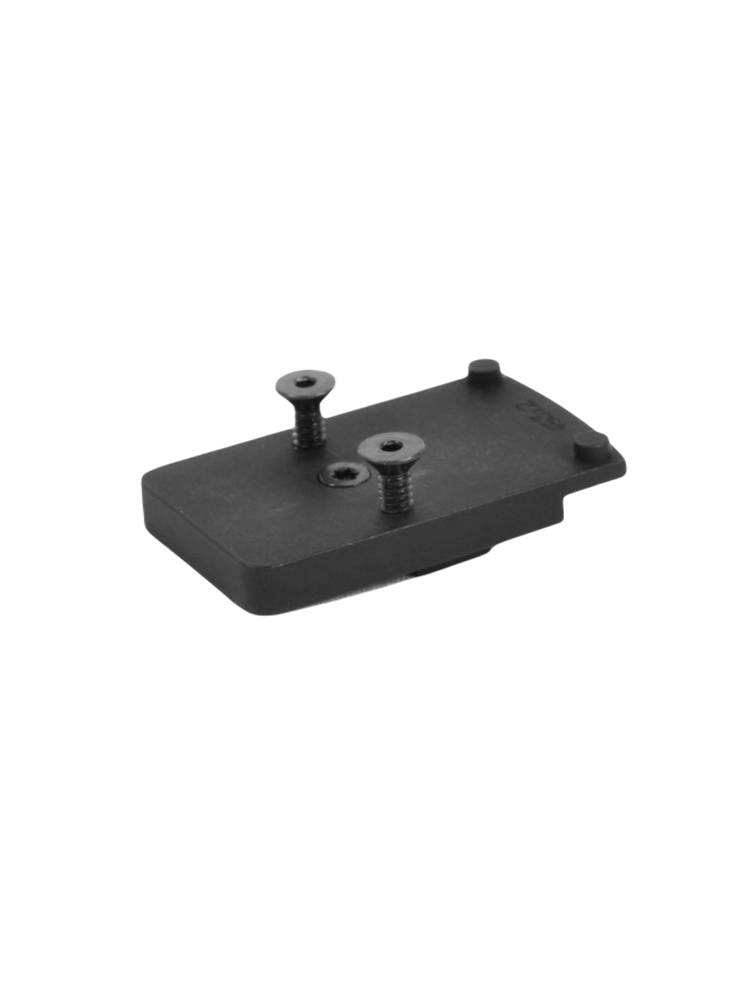

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
– Remove the rear sight*
– Install the EGW Sight Mount in the dovetail
– Tighten set screw (if applicable)
– Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
– Apply blue Loctite to the provided mounting screws
– Torque mounting screws to 15in/lbs
2 Flat Head Cap Screws – Provided for Trijicon RMR
The screws that are included with this mount require a 5/64» allen wrench for installation.
WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
Modification of your firearm may nullify the manufacturer’s warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
